Green laser processing for glass
Drilling, cutting, chamfering, countersinking, marking and coating removal — all in one machine, no tool change. Parts are cut free, not broken out of the mother glass.
Send us your specification →What the green laser does
One laser, every process step — and finished parts release directly from the mother glass.
Drilling & countersinking
Small, precise holes without mechanical stress.
All about laser drillingFree-form cutting
Any contour, cut fully free — no breaking parts out of the mother glass.
Chamfering
Possible in the same setup, during the drilling process.
Marking & structuring
Fine surface structuring and marking.
Coating removal
Layer-accurate ablation of coatings on glass.
All in one machine
Every process step — without a single tool change.
Process window

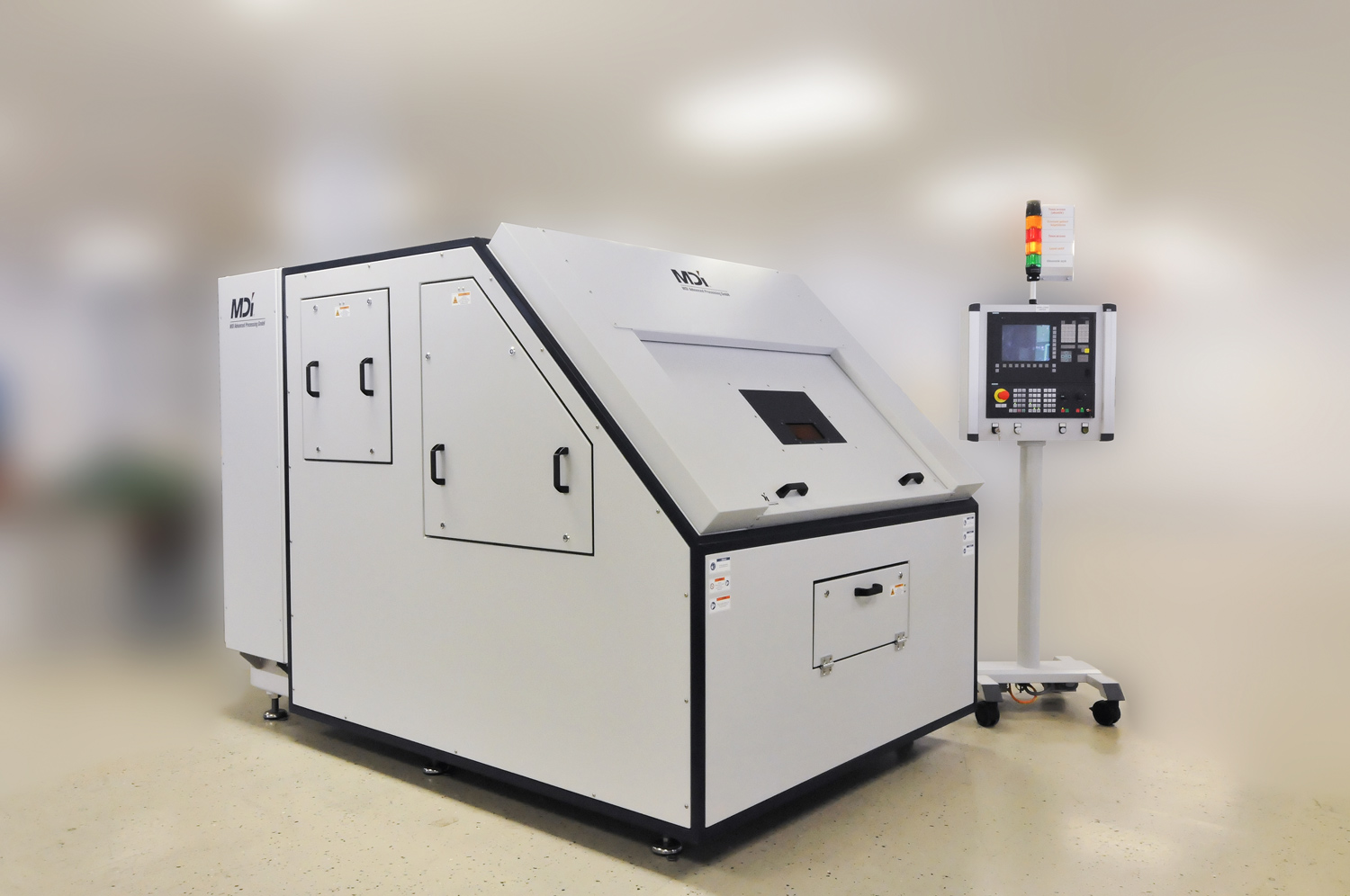

LD 500 – 650 – 2000
Our LD machine series is available in 500x500mm, 650x900mm and 1500x1000mm table versions. Equipped with a 532nm laser (“green laser”), the LD series drilling and cutting machines enable high-quality removal of brittle materials and are thus used in a wide range of industrial applications.
- Green laser
- Drilling, marking, structuring and ablation of free forms
- Substrate thickness from 0.3mm to 50.0mm
- Exactly right-angled machining
- Chamfering possible during the drilling process
- High yield with high accuracy
- Space-saving stand-alone unit with simple user interface
- Integrated suction
Energy and cost efficient
Conventional drilling and shape cutting technologies have reached their limits. But with increasingly demanding customer requirements and product designs, new glass processing technologies must meet this challenge. Our green laser technology meets and exceeds these modern requirements by inspiring designers to be more creative with their glass specifications.
Advantages of our machines:
No tools — only software!
You can cut out any shape simply by adjusting the software.
High yield!
Due to the precision of the laser and minimal breaks, you have almost no material loss.
Clean process!
No water, no sand, no dirt.
Cost effective!
Eliminates additional grinding and washing steps.
Energy efficient!
Only 6.5 KVA at maximum peak power.
All-in-one machine!
Marking, coating removal, partial removal, chamfering, countersinking, drilling — all in one machine.
Minimum operating costs
Unlike other glass processing alternatives that require a significant amount of energy to operate, our laser machines use only a fraction of the energy, reducing overall production costs. In addition, unlike conventional methods, our machines do not require regular replacement consumables, which are often expensive. This makes our machines an economical choice for companies that want to reduce production costs without compromising quality.
| Technology | Average cost per hour | Annual costs at 24/7 | Costs after 3 years |
|---|---|---|---|
| Laser | $5,00 | $40.230,00 | $120.960,00 |
| Waterjet | $21,00 | $169.344,00 | $508.032,00 |
| Savings | $129.024,00 | $387.072,00 |
Glass & brittle materials
Fused silica
Borosilicate
Coated glass
Thin glass
For these industries
The same process, applied by industry — explore the dedicated pages.
Green-laser processing on demand
Bring your part — we run it on our green-laser systems, from first sample to recurring series, without capital investment.
Send us your specification →
A part for the green laser? Let’s talk.
